Using Test Patterns in ProPresenter

Test Patterns have been a part of ProPresenter for some time, but starting in 7.15, we have expanded the Test Pattern functionality to provide even further tools to calibrate Displays.

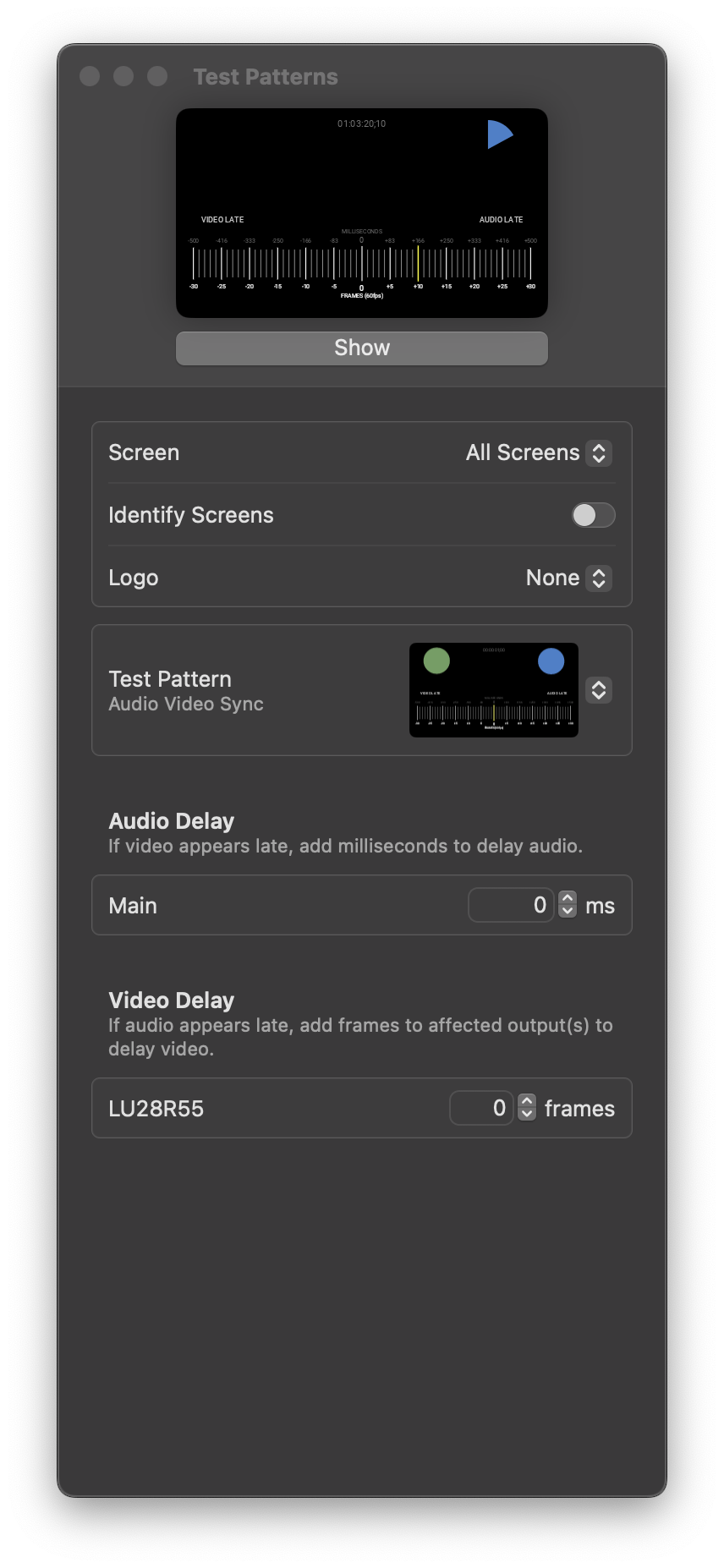

Screenshot 2023-12-02 at 10.19.39 PM.png

Using Test Patterns in ProPresenter is very easy. To open the Test Patterns menu, you can choose View>Test Patterns, or choose "Test Patterns" at the bottom of the Screen Configuration window.



Inside of the Test Patterns window, you can choose from the following patterns:

  • Audio Video Sync (New)
    • This provides the ability to get audio from ProPresenter to sync with your video output by showing a calibration to allow manual delay of audio or video.
  • Blend Grid
    • This is useful for edge blending screens
  • Color Bars
    • This is useful for seeing how each colors look on your screens
  • Focus
    • This is useful for determining the focus of screens
  • Greyscale
    • This is useful for viewing luminance values on screens
  • Lines (New)
    • This is useful for seeing how well motion travels across screens
  • Logo Bounce (New)
    • This is useful for seeing how well motion travels across screens
  • Radar (New)
    • This is useful for seeing how well motion travels across screens
  • Solid Color
    • This is useful to see how specific colors look on screens
  • Text
    • This is useful for determining the focus of screens
